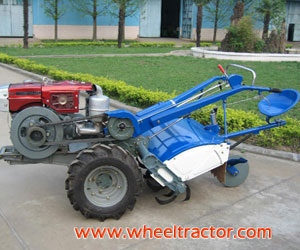

Go back to catalogue Two Wheel Tractor
Payment Terms: T/T, L/C At Sight
Package: Pallet Packing or as customer requier
Minimum Order:1 SET
Delivery Time:15 Days - 30Days
Export Markets:North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
wheeltractor
E-mail Us
PDF Download
Online Inquiry
|
Model |
Unit |
DF-121 |
|
Without rotavator |
kg |
353 |
|
With rotavator |
458 |
|
|
Working weight (with rotavator) |
kg |
493 |
|
Turning speed of rototilling shaft |
rpm |
188/300 |
|
Overall dimensions (LxWxH) |
mm |
2680 x 960 x 1250 |
|
Number of blades |
PCS |
18 |
|
Rototilling width |
mm |
600 |
|
Type of tractor |
|
Single axle, dual-purpose for both traction & drive |
|
Forword |
Km/h |
1.4,2.5,4.1,5.3,9.4,15.3 |
|
Reverse |
1.1, 3.8 |
|
|
Type size |
|
6.00-12 |
|
Wheel track |
mm |
800, 740, 640, 580(normally use 800) |
|
Min. ground clearance |
mm |
185 |
|
Min. turning radius |
m |
0.9(with no rotavator) |
|
Model of engine |
|
ZS195N |
|
Type of engine |
|
Horizontal 4-stroke |
|
Bore x stroke |
mm |
95×115 |
|
Total displacement |
L |
0.815 |
|
Compression ratio |
|
20:01 |
|
Turing speed of crankshaft |
rpm |
2000 |
|
1-hour rated output |
KW/hphp |
9.3/12.65 |
|
12-hour rated output |
KW/hp |
8.3/11.29 |
|
Specific fuel consumption |
g/kw.h |
≤258 |
|
Specific lube oil consumption |
g/kw.h |
≤2.04 |
|
Cooling mode |
|
Condenser (Radiator) |
|
Main farm implements (optional) |
Anti-skid steel wheel Model 100-640 |
|
Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
