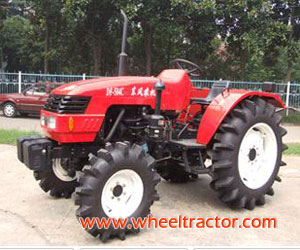

Dongfeng Tractor - DF454
Go back to catalogue Dongfeng Tractor
Go back to catalogue Dongfeng Tractor
Payment Terms: T/T, L/C At Sight
Package: Pallet Packing or as customer requier
Minimum Order:1 SET
Delivery Time:15 Days - 30Days
Export Markets:North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
wheeltractor
E-mail Us
PDF Download
Online Inquiry
| Tractor Parameters | Model | DF-454 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm) | 3725×1615×2710 (Height to steering wheel) | ||
| Wheel Track(mm) | Front | 1200-1500 | |
| Rear | 1200-1620(1300) | ||
| Wheel Base(mm) | 1855 | ||
| Ground Clearance(mm) | Under Front Axle | 432 | |
| Rated Traction Force(N) | 10500 | ||
| Construction Mass(Kg) | 1720 | ||
| Min. Turning Radius(m) | 3.75 | ||
| Theoretical Speed(no creeper) | Forward(km/h) | 1.58,2.60,3.34,5.29,4.1,6.1,8.78 13.90,10.87,17.92,23.04,36.18 | |
| Reverse(km/h) | 4.21,6.5,8.92,14.12 | ||
| Theoretical Speed(with creeper) | Forward(km/h) | N/W | |
| Reverse(km/h) | N/W | ||
| Engine Specifications | Model | 4L68,JD4100 | |
| Type | 4-cylinder,Upright inline cylinder radiator cooling,4-storke cycle, direct-injection | ||
| Rated Power(Kw/hp) | 36.8/50.0 | ||
| Rated Fuel Consumption(g/kw/h) | ≤242 | ||
| Rated Speed(rpm) | 2400 | ||
| Bore×Stroke(mm) | 95*100,100*105 | ||
| Total Displacement(L) | 2.86/3.3 | ||
| Drive System | Clutch | Dry Linkage type dual shift Function clutch | |
| Gear Box | 4×(3+1),sleeve, gear | ||
| Main Drive | One Pair of Spiral Bevel gears | ||
| Differential | Bevel Gear | ||
| Differential Lock | sliding pin, foot operated | ||
| Final Transmissions | planetary reduction gear | ||
| Travelling Mechanism | Tyre | front | 5.50-16,6.00-16 |
| rear | 12.4-28 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Oil immersed multiplate disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point(Kg) | 12100 |
| 3-point Suspension | Category: II | ||
| P.T.O.Shaft | Rotating Speed(rpm) | 540/1000 | |
| Spline size | 6-φ35 Rectangular spline | ||
Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
